Mulesoft:Flow Execution Time

Mulesoft application is based on flows. Every flow has their own execution time. We can calculate this flow execution is couple of ways. But Mulesoft provides one of the easy way to calculate this flow execution time by using interceptor . Timer interceptor (<timer-interceptor/>) is one of the mule interceptor to calculate Mulesoft flow execution time.

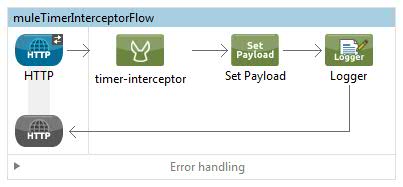

Here is flow diagram for timer-interceptor

muleTimerInterceptorFlow

Here is code for timer-interceptor to implement in your application


<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"       xmlns:spring="http://www.springframework.org/schema/beans"       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsdhttp://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">

<http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8081" basePath="/demo" doc:name="HTTP Listener Configuration"/>

<flow name="muleTimerInterceptorFlow">
<http:listener config-ref="HTTP_Listener_Configuration" path="/" doc:name="HTTP"/>               <timer-interceptor/>
     <set-payload doc:name="Set Payload" value="Hello World"/>
<logger message="#[payload]" level="INFO" doc:name="Logger"/>
</flow>
</mule>

 <timer-interceptor/> tag display time in milliseconds.

You can customize flow execution time to replace <timer-interceptor/>  with  <custom-interceptor>.
In this custom interceptor you need to mention your custom interceptor java class.

<custom-interceptor class=”com.vanrish.interceptor.TimerInterceptor” />

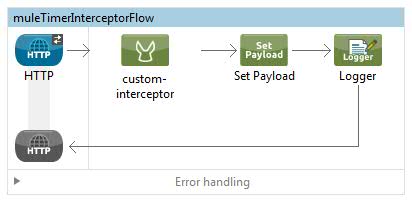

Here is flow diagram for custom timer-interceptor

muleTimerCustomInterceptorFlow

Here is mule-config.xml  code for custom timer-interceptor


<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"       xmlns:spring="http://www.springframework.org/schema/beans"       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">

<http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8081" basePath="/demo" doc:name="HTTP Listener Configuration"/>

<flow name="muleTimerInterceptorFlow">

<http:listener config-ref="HTTP_Listener_Configuration" path="/" doc:name="HTTP"/>

 <custom-interceptor class="com.vanrish.interceptor.TimerInterceptor" />

<set-payload doc:name="Set Payload" value="Hello World"/>
<logger message="#[payload]" level="INFO" doc:name="Logger"/>
</flow>
</mule>

Java TimerInterceptor  code for custom timer-interceptor tag


package com.vanrish.interceptor;



import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.Date;
import org.mule.api.MuleEvent;
import org.mule.api.MuleException;
import org.mule.api.interceptor.Interceptor;
import org.mule.processor.AbstractInterceptingMessageProcessor;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;

/**
* <code>TimerInterceptor</code> simply times and displays the time taken to
* process an event.

*/

public class TimerInterceptor extends AbstractInterceptingMessageProcessor

implements Interceptor {

/**

* logger used by this class

*/

private static Log logger = LogFactory.getLog(TimerInterceptor.class);

public MuleEvent process(MuleEvent event) throws MuleException {
long startTime = System.currentTimeMillis();
DateFormat dateFormat = new SimpleDateFormat("yyyy/MM/dd HH:mm:ss");
Date stdate = new Date();
String start = dateFormat.format(stdate);
System.out.println(start);

MuleEvent resultEvent = processNext(event);

Date enddate = new Date();
String end = dateFormat.format(enddate);

if (logger.isInfoEnabled()) {

long executionTime = System.currentTimeMillis() - startTime;
            logger.info("Custom Timer : "+resultEvent.getFlowConstruct().getName() + " Start at "+start+" and end at "+end +" it took " + executionTime + "ms to process event ["                   + resultEvent.getId() + "]");
}
return resultEvent;
}
}

Mulesoft Polling : A New Perspective

Mulesoft polling is one of the most important features in Mulesoft. If you are dealing with large set of data or asynchronous workflow, polling architect is one of the best options to manage this scenario.
There are two options to configure Mulesoft poll scheduling.

  1. Fixed frequency scheduler – you can define polling time in frequency, start delay and time unit. This is one of the simplest ways to define your polling.
  2. Cron scheduler – Cron scheduler gives ability to use expression language and manage complex scheduling polling.

There is no relationship between two polling. This was challenge for me to get the relationship between two polling so that I can manage my data more efficiently.

Mulesoft gives couple of options to set up relationship between two polls.

Watermark – In polling there is always challenge to process newly created data and keep persist pointer for processed data to avoid duplicate processing. Mulesoft allows us as Watermark to persist this pointer in objectstore. Mule sets a watermark to a default value the first time the flow runs, then uses it as necessary when running a query or making an outbound request. Based on flow Mule may update the original value of the watermark or maintain the original value.
Here is simple flow to show how to implement watermark for poll

Poll Watermark Flow Diagram
poll-watermark

Here is code for this flow


<?xml version="1.0" encoding="UTF-8"?>
  <mule xmlns:schedulers="http://www.mulesoft.org/schema/mule/schedulers" xmlns:tracking="http://www.mulesoft.org/schema/mule/ee/tracking"
   xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:mulexml="http://www.mulesoft.org/schema/mule/xml" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
   xmlns:spring="http://www.springframework.org/schema/beans"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://www.mulesoft.org/schema/mule/db http://www.mulesoft.org/schema/mule/db/current/mule-db.xsd
   http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
   http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
   http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
   http://www.mulesoft.org/schema/mule/xml http://www.mulesoft.org/schema/mule/xml/current/mule-xml.xsd
   http://www.mulesoft.org/schema/mule/ee/tracking http://www.mulesoft.org/schema/mule/ee/tracking/current/mule-tracking-ee.xsd
   http://www.mulesoft.org/schema/mule/schedulers http://www.mulesoft.org/schema/mule/schedulers/current/mule-schedulers.xsd">
  <spring:beans>
     <spring:bean id="dataSourceBean" name="dataSource_Bean" class="org.apache.commons.dbcp.BasicDataSource">
       <spring:property name="driverClassName" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/>
       <spring:property name="username" value="********"/>
       <spring:property name="password" value="********* "/>
       <spring:property name="url" value="jdbc:jtds:sqlserver://localhost:60520;Instance=CRM;DatabaseName=vanrish;domain=man;integrated security=false"/>
    </spring:bean>
 </spring:beans>
  <db:generic-config name="Generic_Database_Configuration" dataSource-ref="dataSourceBean" doc:name="Generic Database Configuration" >
     <reconnect-forever frequency="30000"/>
  </db:generic-config>
<flow name="poll-watermarking" processingStrategy="synchronous">
  <poll doc:name="Poll">
    <schedulers:cron-scheduler expression="0 22 12 * * ?"/>
    <watermark variable="serialNumber" default-expression="0" selector="LAST" selector-expression="#[payload.serialNumber]"/>
    <db:select config-ref="Generic_Database_Configuration" doc:name="Select Database">
       <db:dynamic-query><![CDATA[SELECT
MessageId, MessageType,SerialNumber,CreatedOn  FROM Message where SerialNumber  > #[Integer.parseInt(flowVars['serialNumber'])] order by SerialNumber asc]]></db:dynamic-query>
    </db:select>
 </poll>
   <logger message="#[flowVars['serialNumber']] == Hello this is Loggin Message == #[payload]" level="INFO" doc:name="Logger"/>
  </flow>
</mule>

Idempotent Filter – Idempotent filter is another way in Mule we can keep track between two polling. This filter ensures that only unique messages are received by a service by checking the unique ID of the incoming message. This filter also store unique id/pointer in objectstore in mule.
Here is simple flow to use Idempotent Filter

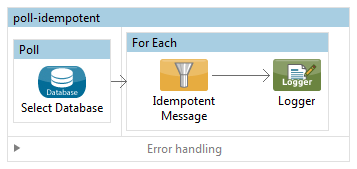

Poll Idempotent Filter flow Diagram
poll-idempotent

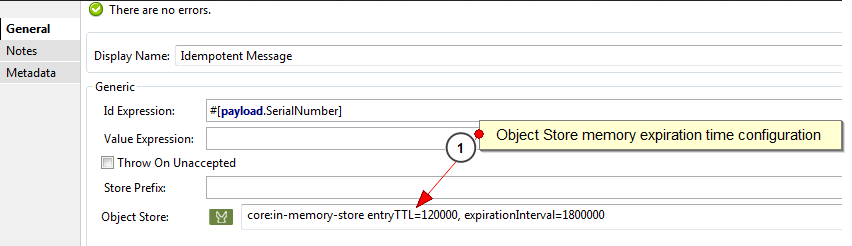

idempotent-objectStore

Here is code

<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:schedulers="http://www.mulesoft.org/schema/mule/schedulers" xmlns:tracking="http://www.mulesoft.org/schema/mule/ee/tracking" xmlns:db="http://www.mulesoft.org/schema/mule/db"
  xmlns:cassandradb="http://www.mulesoft.org/schema/mule/cassandradb" xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:json="http://www.mulesoft.org/schema/mule/json" xmlns:mulexml="http://www.mulesoft.org/schema/mule/xml" xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
  xmlns:spring="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.mulesoft.org/schema/mule/db http://www.mulesoft.org/schema/mule/db/current/mule-db.xsd
  http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
  http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
  http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
  http://www.mulesoft.org/schema/mule/xml http://www.mulesoft.org/schema/mule/xml/current/mule-xml.xsd
  http://www.mulesoft.org/schema/mule/ee/tracking http://www.mulesoft.org/schema/mule/ee/tracking/current/mule-tracking-ee.xsd
  http://www.mulesoft.org/schema/mule/schedulers http://www.mulesoft.org/schema/mule/schedulers/current/mule-schedulers.xsd">
    <spring:beans>
      <spring:bean id="dataSourceBean" name="dataSource_Bean" class="org.apache.commons.dbcp.BasicDataSource">
        <spring:property name="driverClassName" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/>
        <spring:property name="username" value="*******"/>
        <spring:property name="password" value="********"/>
        <spring:property name="url" value="jdbc:jtds:sqlserver://localhost:60520;Instance=CRM;DatabaseName=vanrish;domain=man;integrated security=false"/>
      </spring:bean>
    </spring:beans>
    <db:generic-config name="Generic_Database_Configuration" dataSource-ref="dataSourceBean" doc:name="Generic Database Configuration" >
      <reconnect-forever frequency="30000"/>
    </db:generic-config>
    <flow name="poll-idempotent" processingStrategy="synchronous">
      <poll doc:name="Poll">
        <fixed-frequency-scheduler frequency="10000"/>
        <db:select config-ref="Generic_Database_Configuration" doc:name="Select Database">
          <db:dynamic-query><![CDATA[SELECT  MessageId, MessageType,SerialNumber,CreatedOn  FROM Message order by SerialNumber asc]]></db:dynamic-query>
        </db:select>
      </poll>
      <foreach doc:name="For Each">
        <idempotent-message-filter idExpression="#[payload.SerialNumber]" doc:name="Idempotent Message">
          <in-memory-store entryTTL="120000" expirationInterval="1800000"/>
        </idempotent-message-filter>
        <logger message="#[payload.SerialNumber] == Hello this is Loggin Message == #[payload]" level="INFO" doc:name="Logger"/>
      </foreach>
    </flow>
  </mule>
